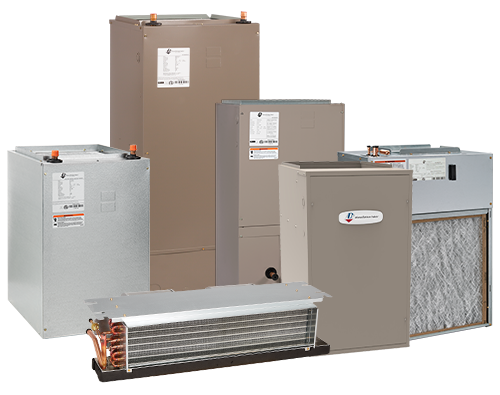

Air Handlers

ADP air handlers are thoroughly tested to ensure quality and deliver reliable ratings, as well as designed to save customers time on installation. Our air handlers are the perfect replacement for multi-family applications.

Series F Series B Series S Series CP Series MX Series
Description Compact
Air Handler 		Hydronic
Air Handler 		Wall Mount
Air Handler 		Soffit Mount
Air Handler 		Modular Blower
Warranty
Extended Warranty Available ✓ ✓ ✓ ✓ ✓
Coil Features
Microban Antimicrobial Pan ✓
UV Resistant ✓ ✓ ✓ ✓
Copper Coil ✓ ✓ ✓ ✓
Aluminum Coil ✓ ✓ ✓
Application
Horizontal Right/Left ✓ ✓ ✓ ✓
Vertical Downflow * ✓
Vertical Upflow ✓ ✓ ✓
Air Return ✓ Bottom ✓ Bottom Side ° ✓ Front ✓ Bottom ✓ Bottom/Side**
Motor
Five-Speed ECM ✓
120 V
240 V
NEW FOR 2023 		✓
240 V
 		✓
240 V
 		✓
120 V
240 V
NEW FOR 2023
PSC ✓
120 V
240 V
 		✓
120 V
240 V
 		✓
240 V
 		✓
240 V
 		✓
120 V
Variable Speed ECM ✓
120 V
240 V
Heat Options
Electric ✓ * * ✓ ✓ * *
Hot Water ✓ * ✓
No Heat ✓ ✓ ✓ ✓
Description
Compact
Air Handler
Warranty
Extended Warranty Available
Coil Features
Microban Antimicrobial Pan
UV Resistant
Copper Coil
Aluminum Coil
Application
Horizontal Right/Left
Vertical Upflow
Air Return : Bottom
Motor
Five-Speed ECM :
120 V
240 V
NEW FOR 2023
PSC :
120 V
240 V
Heat Options
Electric : *
No Heat
Description
Hydronic
Air Handler
Warranty
Extended Warranty Available
Coil Features
UV Resistant
Copper Coil
Application
Horizontal Right/Left
Vertical Upflow
Air Return : Bottom Side °
Motor
PSC :
120 V
240 V
Variable Speed ECM :
120 V
240 V
Heat Options
Hot Water : *
No Heat
Description
Wall Mount
Air Handler
Warranty
Extended Warranty Available
Coil Features
UV Resistant
Copper Coil
Aluminum Coil
Application
Air Return : Front
Motor
Five-Speed ECM :
240 V
PSC :
240 V
Heat Options
Electric
Description
Soffit Mount
Air Handler
Warranty
Extended Warranty Available
Coil Features
UV Resistant
Copper Coil
Aluminum Coil
Application
Horizontal Right/Left
Air Return : Bottom
Motor
Five-Speed ECM :
240 V
PSC :
240 V
Heat Options
Electric : *
No Heat
Description
Modular Blower
Warranty
Extended Warranty Available
Coil Features
Application
Horizontal Right/Left
Vertical Downflow
Vertical Upflow
Air Return : Bottom/Side**
Motor
Five-Speed ECM :
120 V
240 V
NEW FOR 2023
PSC :
120 V
Heat Options
Hot Water
No Heat

✓ Available factory installed

* Available field installed kit

° Side return available in 12-36 MBTUH only

°° Side return on HW models only

Product Literature

Air Handlers Main

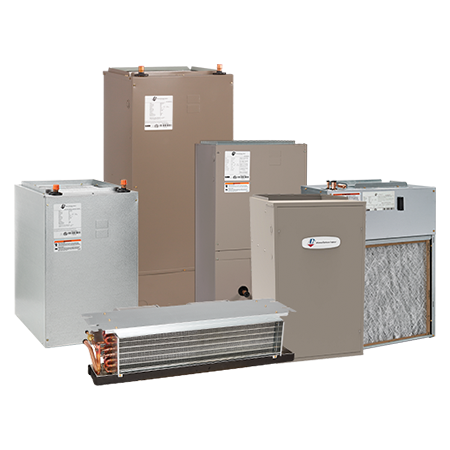

Air Handlers

F Series Literature

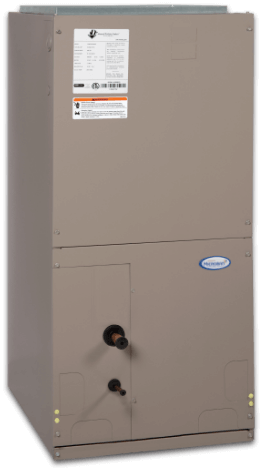

F Series

ADP's F Series air handler offers a compact, efficient solution that's perfect for single or multi-family use. The design has been generated to save customers a substantial amount of time on installation.
B Series Literature

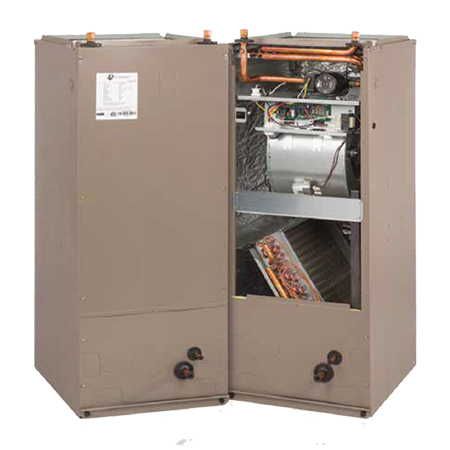

B Series

ADP's B Series hydronic air handlers offer several options for flexibility. This series offers electric or hot water heat, as well as standard or variable-speed motors. ADP air handlers are the ideal choice for a variety of residential applications.

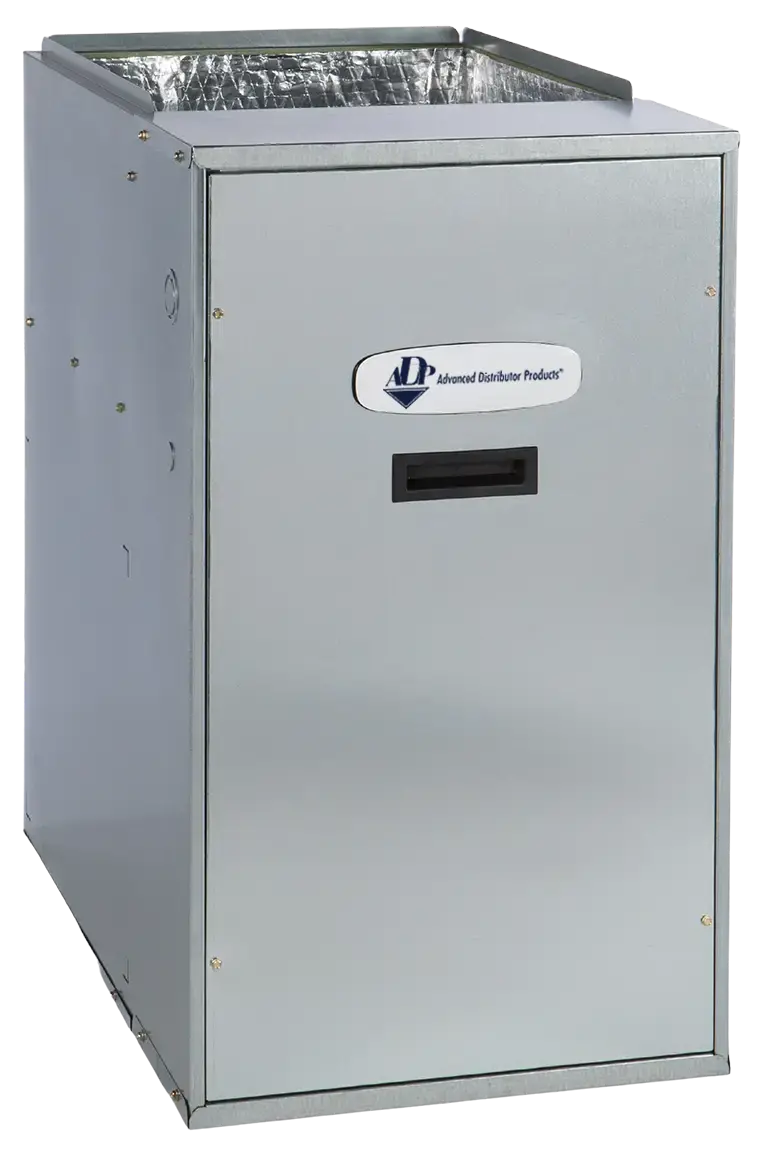

MX Series Literature

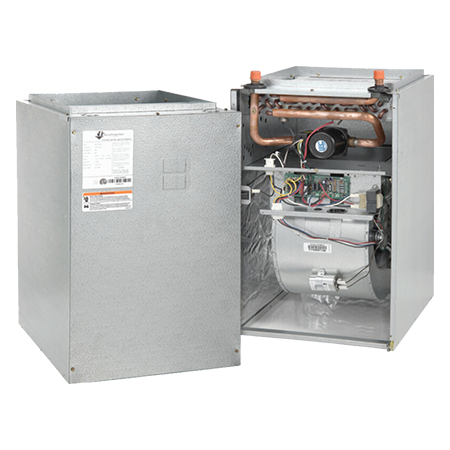

MX Series

ADP's MX Series indoor modular blowers offer flexible options, including electric heat or hot water heat models. ADP air handlers are 100% tested to ensure reliable performance and are designed to save time on installation.
CP Series Literature

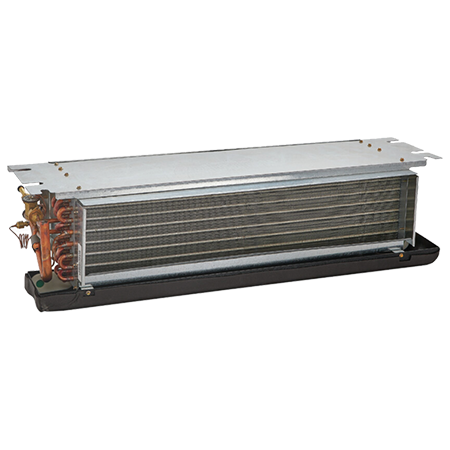

CP Series

ADP's CP Series soffit mount air handlers are designed to meet the needs of the rapidly growing replacement market. All ADP air handlers are thoroughly tested to ensure quality and deliver reliable ratings, as well as designed to save customers time on installation.
S Series Literature

S Series

ADP's S Series compact wall mount air handlers are designed to meet the needs of low height and light weight requirements within the multi-family market.

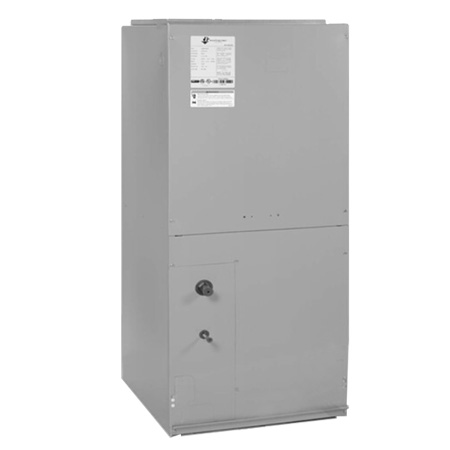

R Series Literature

R Series

Multi-Position Air Handlers
Discontinued
W Series Literature

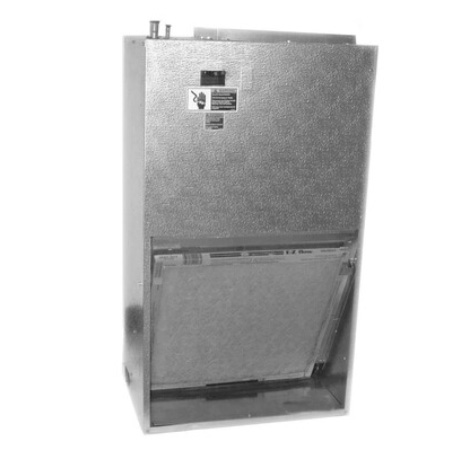

W Series

Wall Mount Air Handlers
Discontinued
