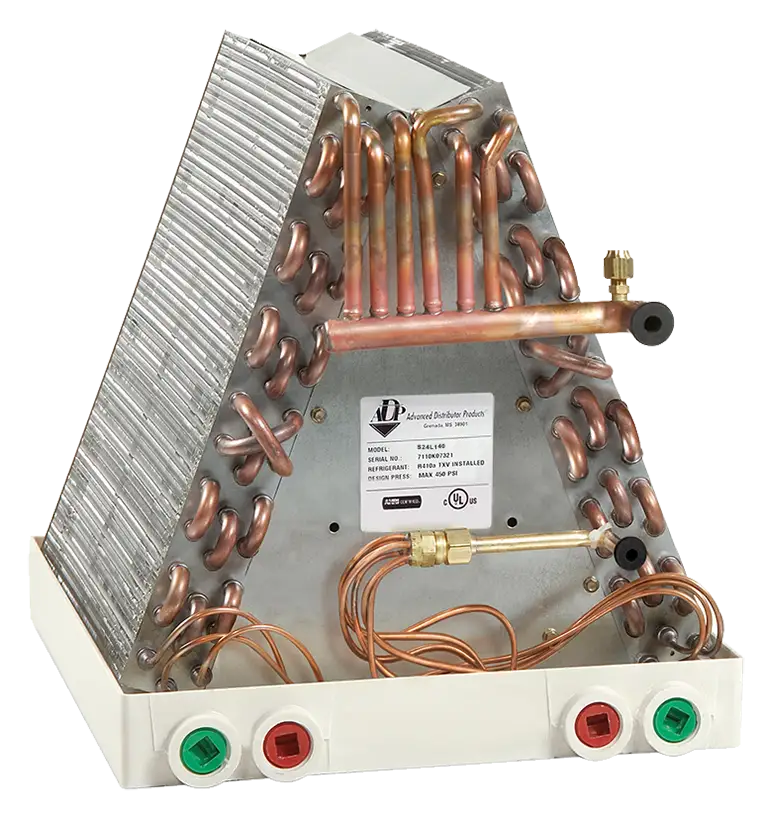

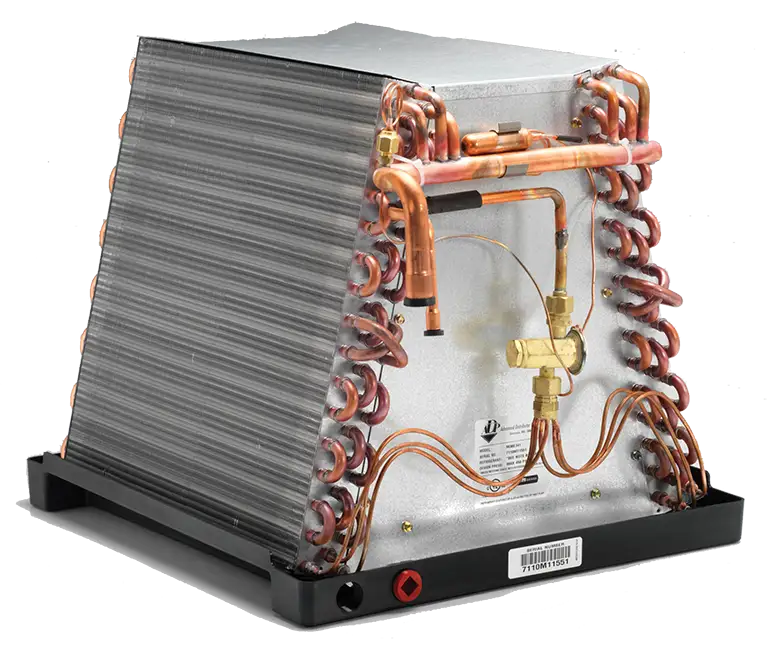

R-410A and R-22 Service Coils

Overview

Millions of R-410A and R-22 systems remain in service today. When a coil fails, contractors need a replacement fast. ADP's R-410A and R-22 service coil lineup helps distributors and dealers keep repairs moving with broad application coverage, quick shipping, and proven field reliability. Existing R-410A and R-22 systems remain serviceable, creating ongoing demand for replacement coils for years to come.

See Product Literature

Key Features

  • Built for the Repair Market: Replacement coils are designed to support the large installed base of R-410A equipment.
  • Quick Shipping: Available through ADP's mixed pallet program for fast replenishment and reduced inventory burden.
  • Broad Application Coverage: One lineup covering a wide range of residential HVAC systems and applications.
  • Matches Nearly Any Outdoor Unit: AHRI-rated combinations help simplify replacement opportunities and support rebate eligibility where applicable.
  • Easy Installation & Service: Designed for simplified access and straightforward serviceability in the field.
  • Leak-Tested Reliability: Every coil is tested twice for leaks to support long-term performance.
  • Brass-to-Brass Connections: Supports trouble-free TXV service and component replacement.

Specifications

  • Refrigerant: R-410A or R-22
  • Applications: Residential replacement and repair
  • Availability: Mixed pallet ordering available
  • Shipping: Quick shipping through participating distributors
  • Warranty: 5-yearwarranty;10-year extended warranty available (terms and conditions apply)

Literature

Service Coils Products are Most Suited in the Following Regions
Map USA

Nomenclature

S 24 R 145
Product Line
Service Coil
Nominal MBTUH
Configuration
R:Right Hand Upflow (CU)
L:Left Hand Upflow (CU)
H:Horizontal (AL)
S:Horizontal Slab (CU)
(Multi-position option not available)
Width/Height
Cased
145:14.5"
175:17.5"
210:21.0"
245:24.5"
Horizontal
145:14.5"
175:17.5"
210:21.0"
245:24.5"
Uncased
130:13.0"
140:14.0"
155:15.5"
170:17.0"
200:20.0"
Slab
187:18.75"
227:22.75"
(see specifications for available options)
