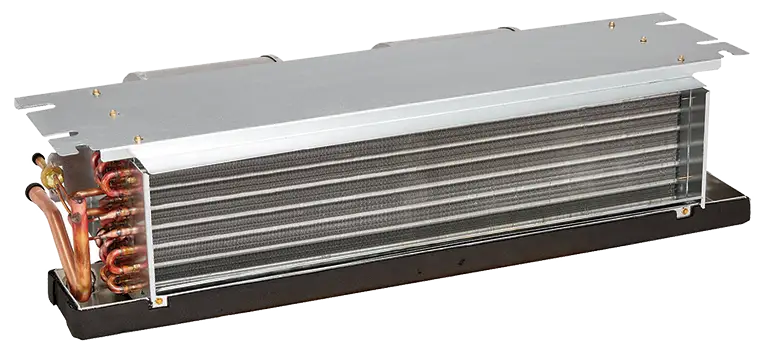

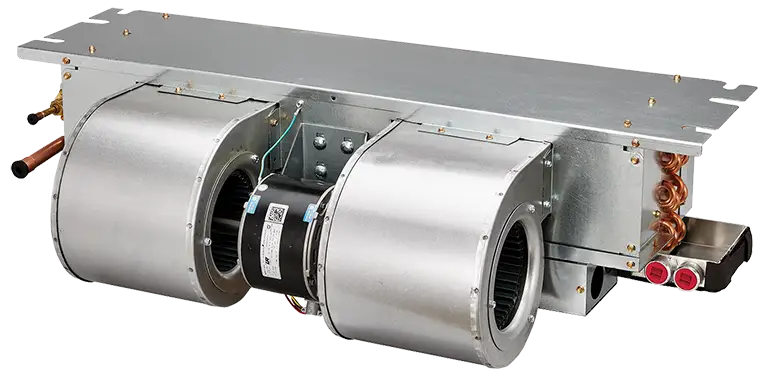

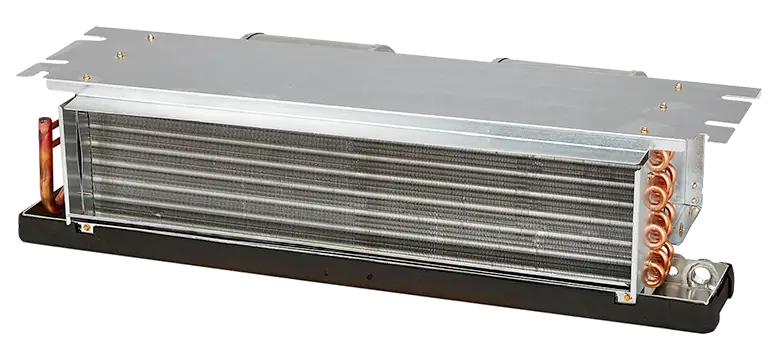

Soffit Mount Air Handler – CP Series

View More Air Handlers
Overview

The CP Series ceiling mount air handlers are designed to meet the needs of the rapidly growing replacement market and for a seamless install in multi-family applications.

Multifamily Logo
Designed for seamless installation in multi-family applications

ADP‘s Compact Wall Mount and Soffit Mount Air Handler Series

Learn More
See Product Literature
Key Features
  • Designed for a seamless and easy install in multi-family applications
  • 1.5, 2, and 2.5 ton options to meet replacement market needs
  • PSC and ECM motor options
  • 208/240 V with factory-installed heat available in 3, 5, 6, 8, and 10 kW
  • Match-ups with all OEM brands
  • Fits industry standard footprint
Specifications
  • Size: Available 1.5 – 2.5 tons
  • Motor: PSC and ECM motor
  • Heat: No heat or factory installed electric heat
Literature
CP Series Products are Most Suited in the Following Regions

Nomenclature

A1 Nomenclature
A2L Nomenclature

A1 Refrigerants Product Nomenclature

C P 18 01C 9 H P 03 1 C A
Series
C = Ceiling mount (uncased)
Blower Motor Type
P = PSC
E = ECM constant Torque
Unit Size (Nominal MBTUH)
18
19
23
24
25
29
30
Slab No.
01C, 02C, 03C, 04C, etc. = Copper
01A, 02A, 03A, 04A etc. = Aluminum
Metering Device
1 = Piston (R-410A)
7 = R-410A Bleed HP-A/C TXV
9 = R-410A Non-bleed HP-A/C TXV
Airflow Config.
H = Horizontial only
Line Connection
S = Stripped wire (no heat models only)
P = Pull disconnect
Heat
00 = No heat
03 = 3kW (18-24)
05 = 5kW (all sizes)
06 = 6kW (all sizes)
08 = 8kW (all sizes)
10 = 10kW (24-30)
Voltage
1 = 208/240 V, 60 Hz, 1ph.
Case
C = Cased
U = Uncased
Revision

A2L Refrigerants Product Nomenclature

C P 18 01C A H P 03 1 C R
Series
C = Ceiling mount (uncased)
Blower Motor Type
P = PSC
E = ECM constant Torque
Unit Size (Nominal MBTUH)
18
19
23
24
25
29
30
Slab No.
01C, 02C, 03C, 04C, etc. = Copper
01A, 02A, 03A, 04A etc. = Aluminum
Metering Device
1 = Piston (R-454B & R-32)
A = R-454B Non-bleed HP-A/C TXV
B = R-32 Non-bleed HP-A/C TXV
C = R-454B Bleed HP-A/C TXV
Airflow Config.
H = Horizontial only
Line Connection
S = Stripped wire (no heat models only)
P = Pull disconnect
Heat
00 = No heat
03 = 3kW (18-24)
05 = 5kW (all sizes)
06 = 6kW (all sizes)
08 = 8kW (all sizes)
10 = 10kW (24-30)
Voltage
1 = 208/240 V, 60 Hz, 1ph.
Case
C = Cased
U = Uncased
Refrigerant Detection System
R = Included (Factory Installed)
