Multi-Position and Hydronic Air Handler – B Series

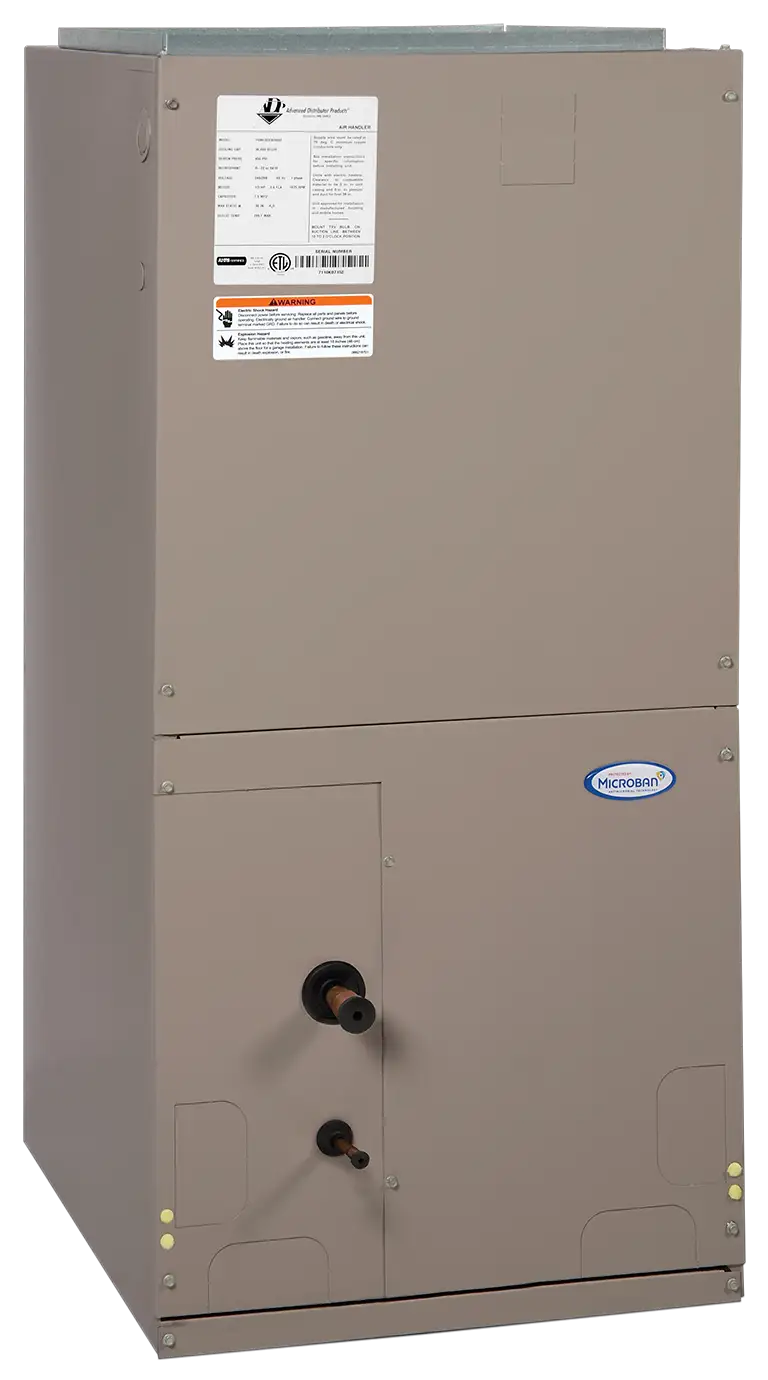

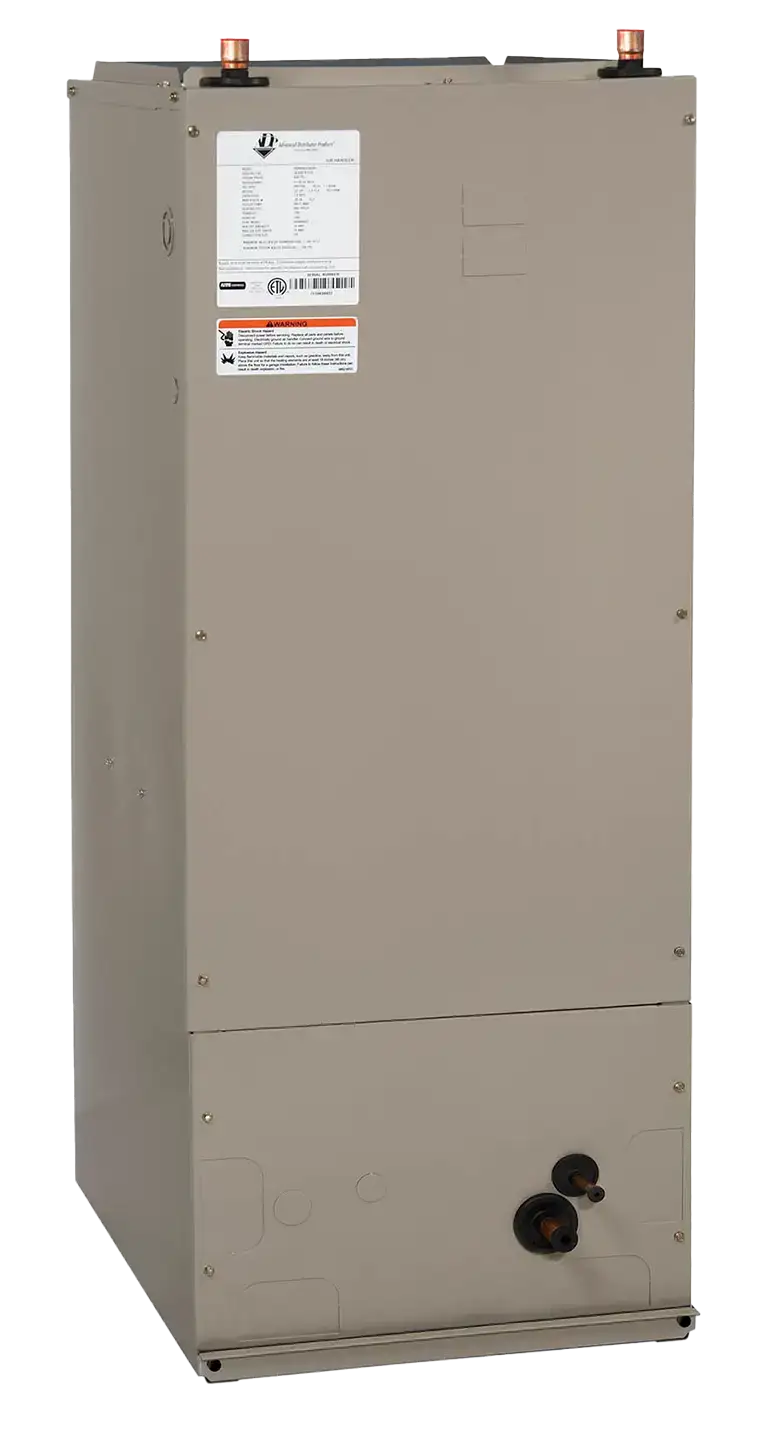

  • B Series

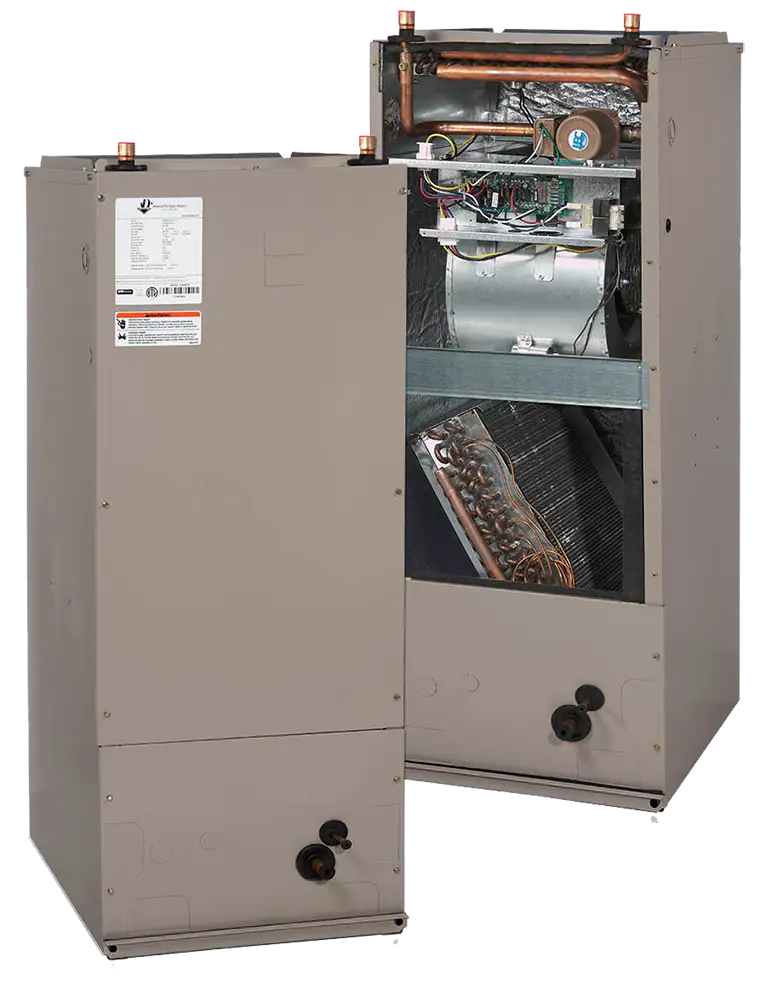

  • B Series (2)

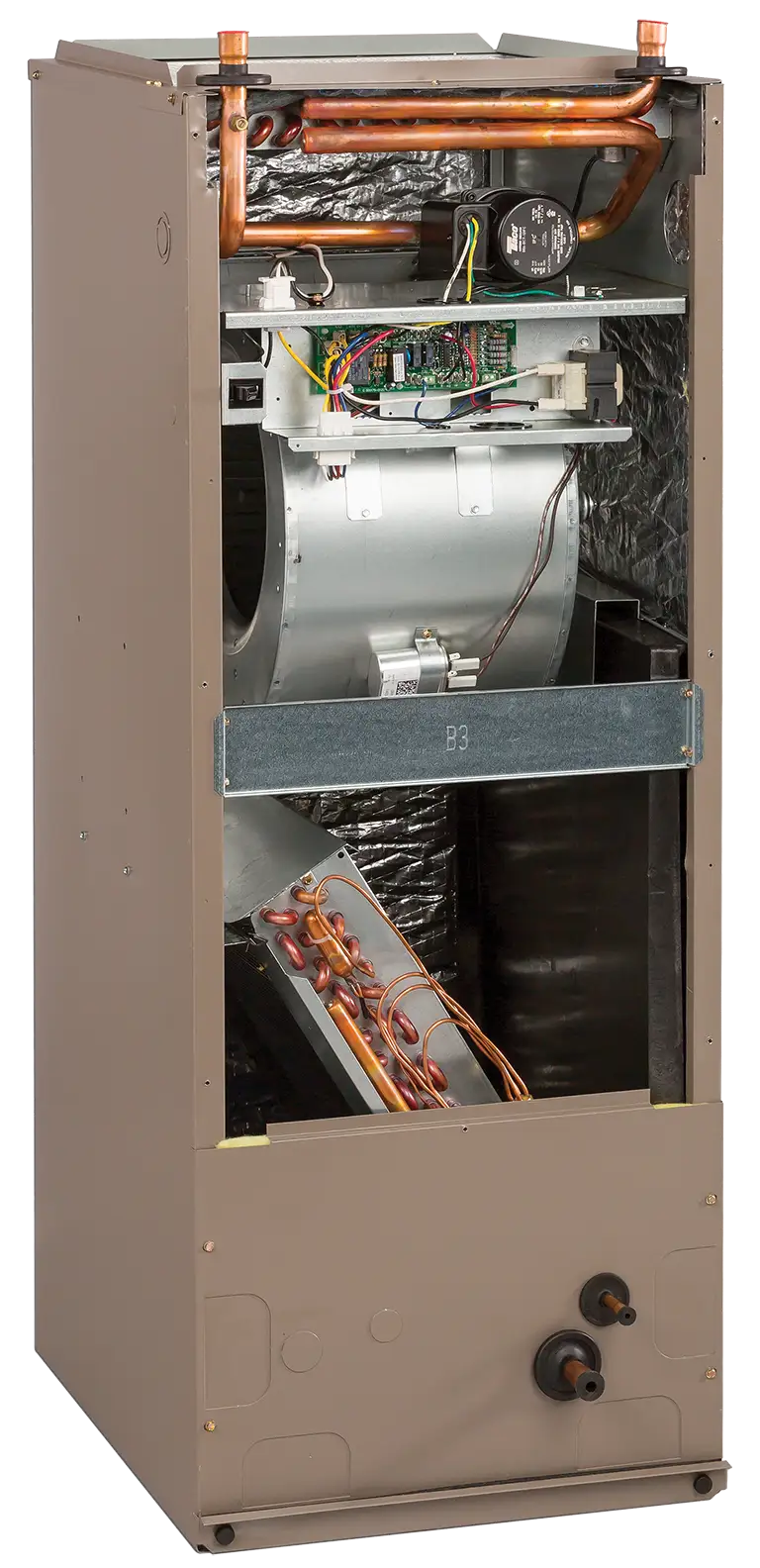

  • B Series Cross Section
  • 0
  • 1
  • 2

Overview

The B Series offers several options for air handler flexibility, including electric or hot water heat, as well as standard or variable-speed motors.


Electrification Logo

The time for electrification is NOW!

This product uses electricity to save on energy usage and reduce greenhouse gasses.

Learn More
See Product Literature

Key Features

  • Multi-position, hydronic for northern climates where heat can be supplied by electric or hot water
  • Plug and pay multi-function control board
  • Side return option available on 12-36 BTU/H models
  • Optional variable speed high-efficiency ECM motor for enhanced product performance
  • Optional easy-to-replace hot water kits, available factory or field installed
  • Field configurable for upflow and horizontal left and right

Specifications

  • Size: Available 1.5 – 5 tons
  • Motor: 3 Speed PSC and variable speed high-efficiency ECM motor
  • Heat: No heat, factory installed hot water heat, or field installed electric heat

Literature

B series Products are Most Suited in the Following Regions
Map B Series

Nomenclature

A1 Refrigerants Product Nomenclature

B C R M A3 9 24 S 3P 3 A
Series
B =Painted cabinet (taupe)
Blower Motor Type
C =3-speed PSC motor
V =Variable-speed high efficiency ECM motor1
Horizontal Drain Pan Position 2
R =Right-hand
O =No cooling coil
Airflow Config.
M =Multi-position
Slab Number
Metering Device
0 =No cooling coil
1 =Piston (R-410A)
7 =Bleed HP-A/C TXV (R-410A)
9 =Non-bleed HP-A/C TXV (R-410A)
Unit Size (Nominal
MBTUH)
Slant Coil =12, 18, 24, 25, 30, 36 (Side return capable)
A-coil=31, 37, 42, 48, 60
Line Voltage Connections
S =Stripped Wire
Heat Options
00 =No Heat
Hot Water 3,5
Coil w/
Pump &
Valve
Assembly
2P =2 row hot water coil (sizes 12-30, 36)
3P =3 row hot water coil (all sizes)
4P =4 row hot water coil (sizes 31, 37-60)
Hot Water
Coil w/
Pump &
Valve
Assembly3,5
2N =2 row hot water coil (sizes 12-30, 36)
3N =3 row hot water coil (all sizes)
4N =4 row hot water coil (sizes 31, 37-60)
Voltage (all
include time
delay
functionality) 3
1 =208/240V, 60Hz, 1ph.
3 =120V, 60Hz, 1ph. 4
4 =120V, 60Hz, 1ph. & 130F° aquastat 3
Revision

[1] Variable-speed motor option not available in some unit sizes and some slab numbers; see price sheet for availability [2] Multi-position air handlers will have factory installed horizontal drain pan on right side. [3] Hot water pump voltage will match the voltage of the unit [4] Electric heat kits not available for 120V, 60 Hz models [5] Hot water models only available in 120V Notes: Horizontal Drain Pan Position for slant coil models indicate that the opposing side of the cabinet is side air return capable. All Air Handlers with slant coils can be field converted to allow for either left or right side air return. Approved in Commonwealth of Massachusetts.

A2L Refrigerants Product Nomenclature

B C R M A3 A 24 S 3P 3 R
Series
B =Painted cabinet (taupe)
Blower Motor Type
C =3-speed PSC motor
V =Variable-speed high efficiency ECM motor1
Horizontal Drain Pan Position 2
R =Right-hand
O =No cooling coil
Airflow Config.
M =Multi-position
Slab Number
Metering Device
1 =Piston (R-454B & R-32)
A =R-454B Non-bleed HP-A/C TXV
B =R-32 Non-bleed HP-A/C TXV
C =R-454B Bleed HP-A/C TXV
Unit Size (Nominal
MBTUH)
Slant Coil =12, 18, 24, 25, 30, 36 (Side return capable)
A-coil=31, 37, 42, 48, 60
Line Voltage Connections
S =Stripped Wire
Heat Options
00 =No Heat
Hot Water
Coil w/
Pump &
Valve
Assembly
2P =2 row hot water coil (sizes 12-30, 36)
3P =3 row hot water coil (all sizes)
4P =4 row hot water coil (sizes 31, 37-60)
Hot Water
Coil w/
Pump &
Valve
Assembly
2N =2 row hot water coil (sizes 12-30, 36)
3N =3 row hot water coil (all sizes)
4N =4 row hot water coil (sizes 31, 37-60)
Voltage (all
include time
delay
functionality) 3
1 =208/240V, 60Hz, 1ph.
3 =120V, 60Hz, 1ph. 4
4 =120V, 60Hz, 1ph. & 130F° aquastat 4
Refrigerent
Detection
System
R =Included (Factory Installed)

[1] Variable-speed motor option not available in some unit sizes and some slab numbers; see price sheet for availability [2] Multi-position air handlers will have factory installed horizontal drain pan on right side. [3] Hot water pump voltage will match the voltage of the unit [4] Electric heat kits not available for 120V, 60 Hz models [5] Hot water models only available in 120V Notes: Horizontal Drain Pan Position for slant coil models indicate that the opposing side of the cabinet is side air return capable. All Air Handlers with slant coils can be field converted to allow for either left or right side air return. Approved in Commonwealth of Massachusetts.
