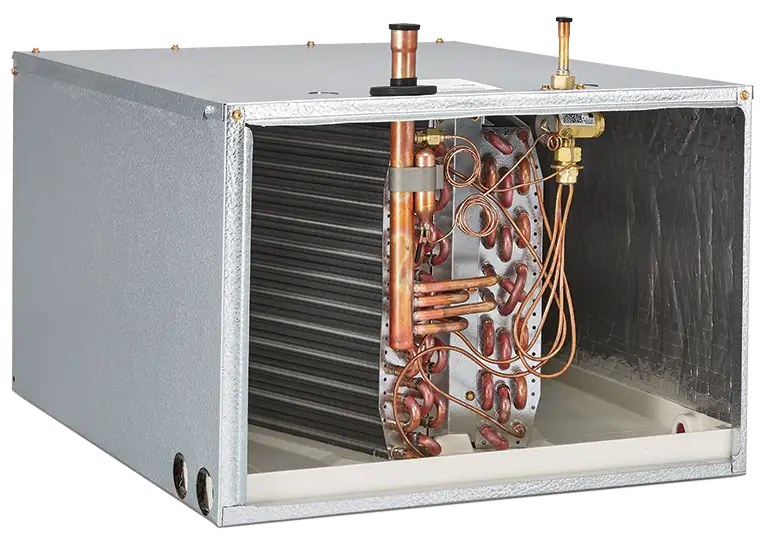

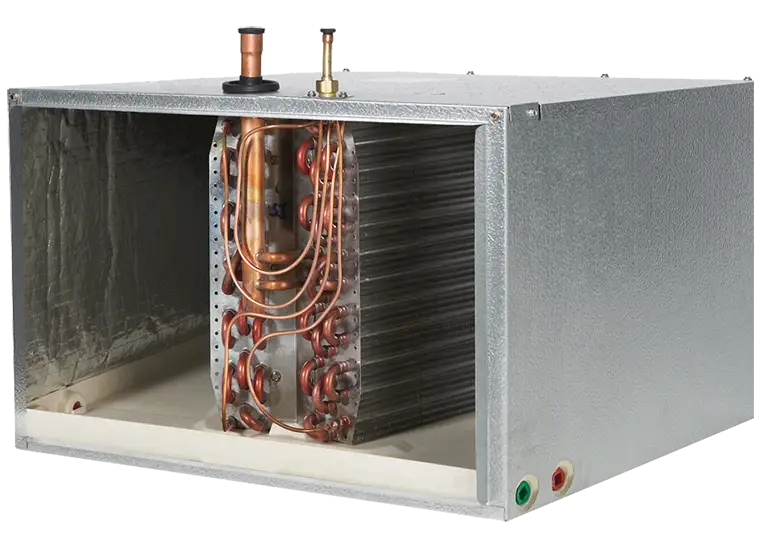

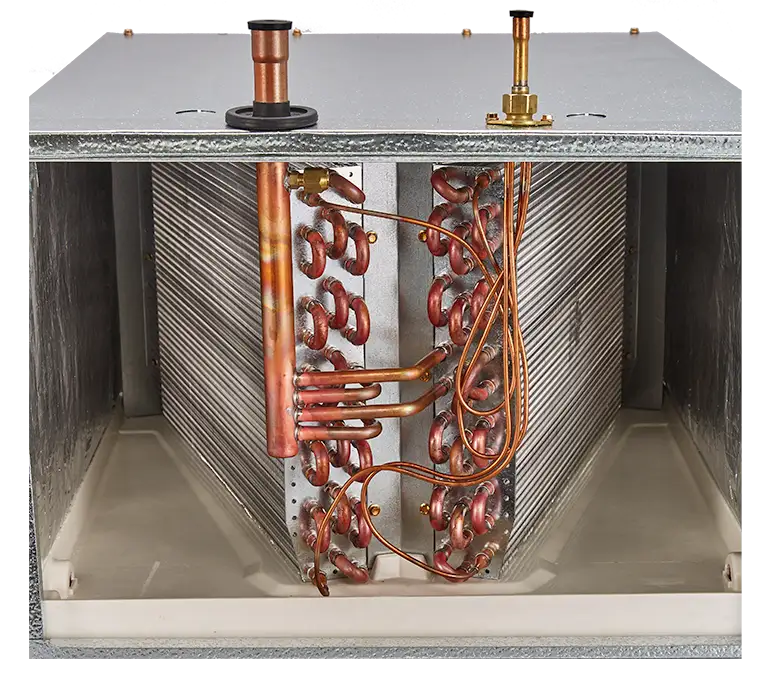

Horizontal Top Connection – V Series

  • V Series 1
  • V Series 2
  • V Series 3
  • 0
  • 1
  • 2

Overview

The V Series premier evaporator coils match perfectly with your system, providing an upgrade over standard matched coils. The V Series is uniquely designed to save customers time on installation while ensuring a leak-free system.

See Product Literature

Key Features

  • FlexCoil: Engineered for all refrigerants
  • Dedicated horizontal coils offer strategic attic solutions over standard MP coils
  • Top refrigerant connections eliminating counter flow and line re-routing
  • Dual condensate drains on each side for additional installation flexibility
  • Top panel with only four screws for fast and easy coil access
  • Available in copper or aluminum
  • Painted cabinet options for furnace color coordination

Specifications

  • Size: Available 1.5 – 5 tons

Literature

V Series Products are Most Suited in the Following Regions
Map West South West USA

Nomenclature

Nomenclature

V 24 H 145 D12 9
Cabinet Color
V = Embossed
A = Armstrong
C = Carrier/
Bryant/
Payne
D = Ducane / Aire-Flo
G = ICP
J = Goodman/
Amana
N = Nordyne
R = Rheem/
Ruud
T = Trane/
American Std
Y = York/
Luxaire/
Coleman
Nominal MBTUH
Coil Type
H =Horizontal A-Coil
Cabinet Height
145 = 14.5"
175 = 17.5"
210 = 21.0"
245 = 24.5"
252 = 25.5"
Slab Number
D =Copper Slab
P =Aluminum Slab
Metering Device
1 =Piston (R-410A)*
7 =Bleed HP-A/C TXV (R-410A)
9 =Non-Bleed HP-A/C TXV (R-410A)

* Piston will always be sized to match the nominal BTU rating of the coil.

V 24 H 145 D12 A R
Cabinet Color
V = Embossed
A = Armstrong
C = Carrier/
Bryant/
Payne
G = ICP
J = Goodman/
Amana
N = Nordyne
R = Rheem/
Ruud
T = Trane/
American Std
Y = York/
Luxaire/
Coleman
Nominal MBTUH
Coil Type
H =Horizontal A-Coil
Cabinet Height
145 = 14.5"
175 = 17.5"
210 = 21.0"
245 = 24.5"
252 = 25.5"
Slab Number
D=Copper Slab
P=Aluminum Slab
Refrigerant Type & Metering Device
1 =Piston (R-454B & R-32) *
A =Non-Bleed HP-A/C TXV (R-454B)
B =Non-Bleed HP-A/C TXV (R-32)
C =Bleed HP-A/C TXV (R-454B)
Refrigerant Detection System (Field Configurable)
R=RDS Controller & Sensor (Factory Installed)"
L=Leak Detection Sensor (Factory Installed)
N=Not Included (Field Installed)

* R-454B Piston factory installed to match the nominal BTU rating of the coil.
